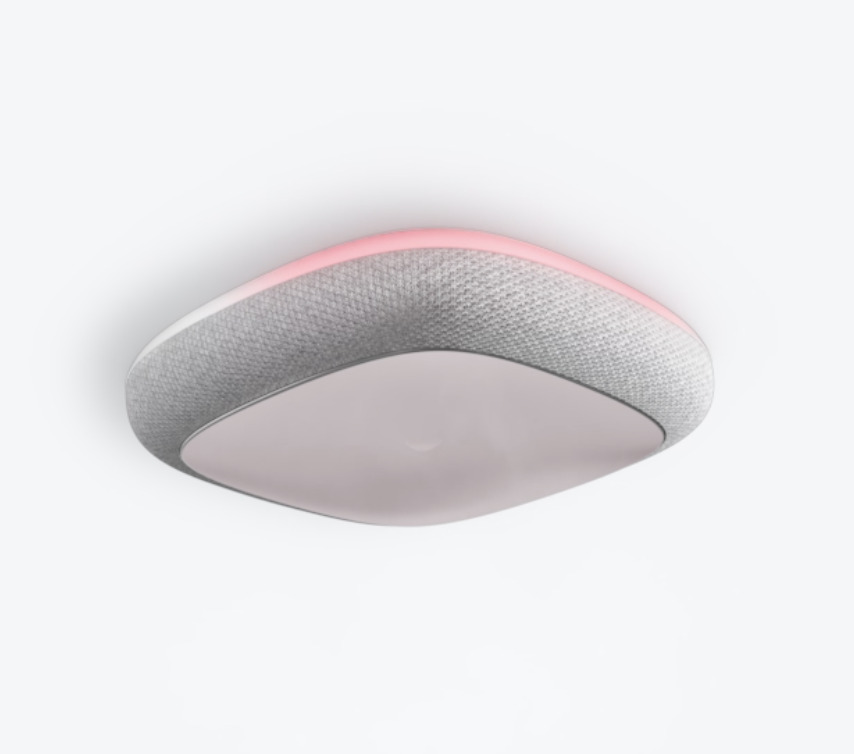

Alive
The Alive is a cutting-edge Smart Living Station designed to enhance room monitoring.
Equipped with a wide range of sensors, an 8MP super-wide-angle camera, and advanced radar technology, Alive ensures comprehensive coverage and real-time alerts for motion, air quality, and much more.
Footage
Reset Button
The reset button is located on the back of the device.
Health Check
Press the reset button once to perform a health check.
If the device is healthy, the LEDs will light up turquoise. Green LEDs indicate that the device is healthy and connected to a network. If there is no LED feedback, the device is not healthy. In this case, try resetting the device.
Reset
Press and hold the reset button for 15 seconds.
The device will reset and reboot. While booting, the LEDs will perform a color-cycle animation. After a successful boot, the LEDs will blink turquoise. If the LEDs light up red for 10 seconds after booting, the reboot was not successful. In this case, try resetting the device again. If the reset still fails, please contact us.
Specs
Dimensions & Weight
- Dimensions: L 159 mm x W 159 mm x H 35 mm
- Weight: 430g (without mounting plate)
Operation & Protection
- Operating Temperature: -5°C to +55°C
- Protection Class: IP20
Power
- Input Voltage: 110-230V AC, 5V/3A DC via USB-C
- Backup Battery: 3.6V Li-ion, 6800 mAh capacity
- Battery Life: 4-5 hours of power
Connectivity
- Wi-Fi: 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
- LTE: Max Downlink 150 Mbps, Max Uplink 50 Mbps
- Bluetooth: Bluetooth 5.0 for device pairing and control
- NFC: Near Field Communication for easy pairing
- Thread: Supported (with software update)
- Zigbee: Supported (with software update)
Camera
- Resolution: 3280 x 2464 (8.08 MP)
- Lens: Super wide-angle
- Field of View: 180° horizontal, 135° vertical, 200° diagonal
- Infrared: 24 infrared LEDs (850nm) with automatic IR filter for night vision
Motion Detection
- Sensor: 24GHz radar
- Field of View: 121° horizontal, 111° vertical
Environmental Sensors
- Temperature: Combined temperature sensor
- Humidity: Integrated humidity sensor
- VOC: Volatile Organic Compound (VOC) sensor for air quality monitoring
- CO Sensor: Carbon monoxide detection
- LUX Sensor: Ambient light sensor
Audio
- Microphones: 5 integrated microphones for voice detection and sound monitoring
- Speakers: Built-in speakers with 90 dB output for audio feedback
Audio-Visual Feedback
- LEDs: RGB-LEDs for visual feedback
- Speakers: Integrated for audio feedback
